Decon E-Drive - Joystick controlled power wheels
Experience the freedom of E-Drive. It will increase your accessibility and improve the quality of life.
Description

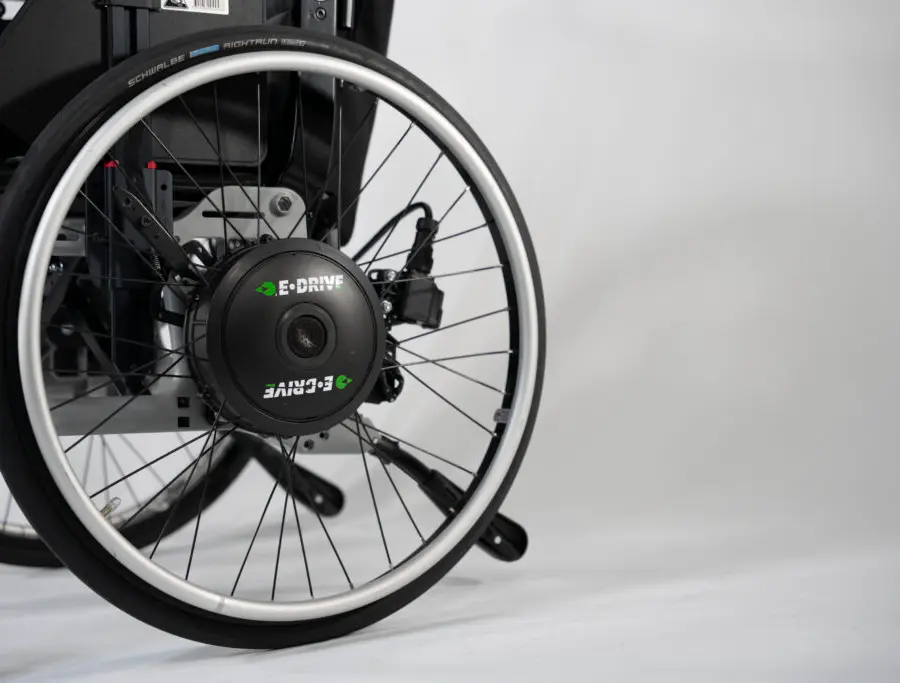

E-Drive is a drive unit that is easily mounted on manual wheelchairs. It is equipped with hub motors of the latest technology. Here you can choose to use the engine or roll yourself. With E-Drive drive units, the opportunity is given for individual adaptation that provides quality for the user. The control is easily done with a joystick.
It is also possible to equip the E-Drive with caregiver operation. E-Drive is just as suitable for use indoors as outdoors. Li-ion batteries are categorized as dangerous goods according to IATA rules. In general (with suitable Class II packaging) it is not a problem to take this battery with you in the aircraft. The user must contact the airline before travel or booking. The certificate for Li-ion battery is available on the Decon Wheels website.
LIGHTWEIGHT AND EASILY TRANSPORTABLE
Fits All Wheelchairs
Available wheel dimensions 16”, 20”, 22”, 24”, 25”, 26”
Set Up In Just 15 Seconds
Indoor and Outdoor Use
Autonomy 16 to 25 km
Transportable By Air
Removable
Dual Controls
Attendant Controls
Engine | 24V 120Wx2 |
Battery type | Nickelmetallhybrid, 24Vx6,7 Ah (optional L i-ion, 25Vx11,8Ah) |
Weight wheel (1pcs.) | 7 kg |
Totalweight | 16 kg (incl NiMH batteri) , 17,5 kg (incl Li-iON batteri) |
Increase seat width | Up to 4 cm (total) |
Wheel dimensions | 16”, 20”, 22”, 24”, 25”, 26” |
Air pressure | 6 Bar, 600 kPa |
Speed | 0-6 km/h |
Max range (with fully charged battery) | 24″: ca NiMH 16 km, Li-ion ca. 30km 16″: 15 km NimH, 25 km Li-ion |
Fuse | 30 A (flat) |
Max userweight | Up to 125 kg |
Max userweight “Heavy-duty” | Up to 150 kg |
Max gradient | 6 degrees |
CE marking | In compliance with MDR 2017/745 class 1 |
User instructions | See usermanual |
Joystick | Contactless sensing of single-chip |
Lever resistance change | Lever springs with different resistance levels |
USB Port for phone charging | Through integrated USB port (5V, 500 mA max.) |
Display | LCD (Visible in sunlight) |
Program parameters | Joystick or computer (Smart Tune) |
Battery charger | 100 to 240V AC, 50/60Hz |
Power rating | 37V. 26A (while charging) |
Charging time | Normal charging ca. 2-3 hours |
