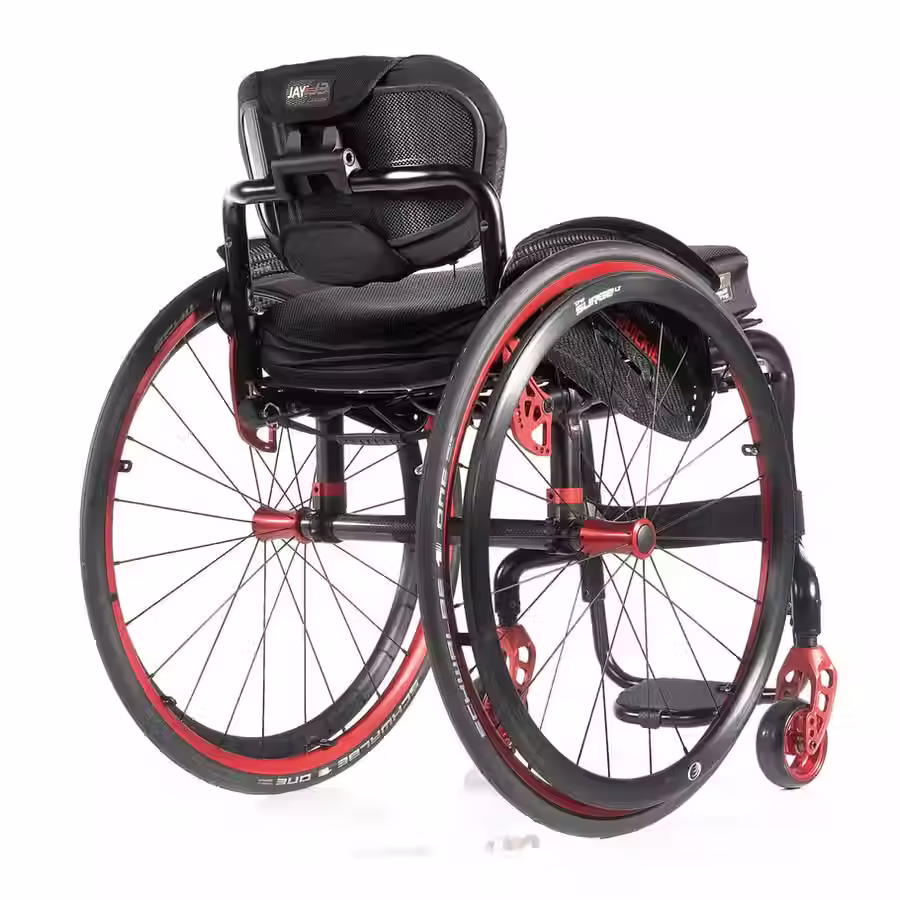

Quickie Helium

Key Features

• Open frame design – reduces weight and easier for lifting and transfers

• 7020 Series Aerospace aluminium – ultra-lightweight but incredibly strong

• Hydro-formed frame design and Carbotecture® components increases strength whilst reduces both weight and frame flex

• Adjustable rear wheel position – enables fine-tuning for easier propulsion, manoeuvrability and performance

• Optional Freestyle Backrest – maximum trunk stability combined with minimalist look

• Wide selection of options and accessories – easily customises to your exact needs

• Wide selection of colours and graphics – to match your unique style

• From 7.5kg total weight

Product specification

• Width: SW + 170 mm (0°); SW + 230 mm (3°); SW +290 mm (6°);

• SW +350 mm (9°). Some configurations can exceed a total width of 700 mm.

• Seat Width: 320 – 460 mm (in 20 mm increments)

• Seat Depth: 340 – 480 mm (in 20 mm increments)

• Front seat height: 430 – 570 mm (in 10 mm increments)

• Rear seat height: 370 -500 mm (in 10 mm increments)

• Backrest Height: 250 – 450 mm in 25 mm increments

• Backrest Angle: -31° to +15° in 3.5° increments

• Frame Angle: 100° / 92° / 88°

• Frame Inset: 0 mm, 10 mm & 30 mm (each side)

• Camber: 0° / 3° / 6° / 9°

• Colours: 32 colours

• Maximum User Weight: 125 kg (100 kg for Proton wheels, clip style seat upholstery & oval shaped backrest)

• Total Weight: from 7.5kg

This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
